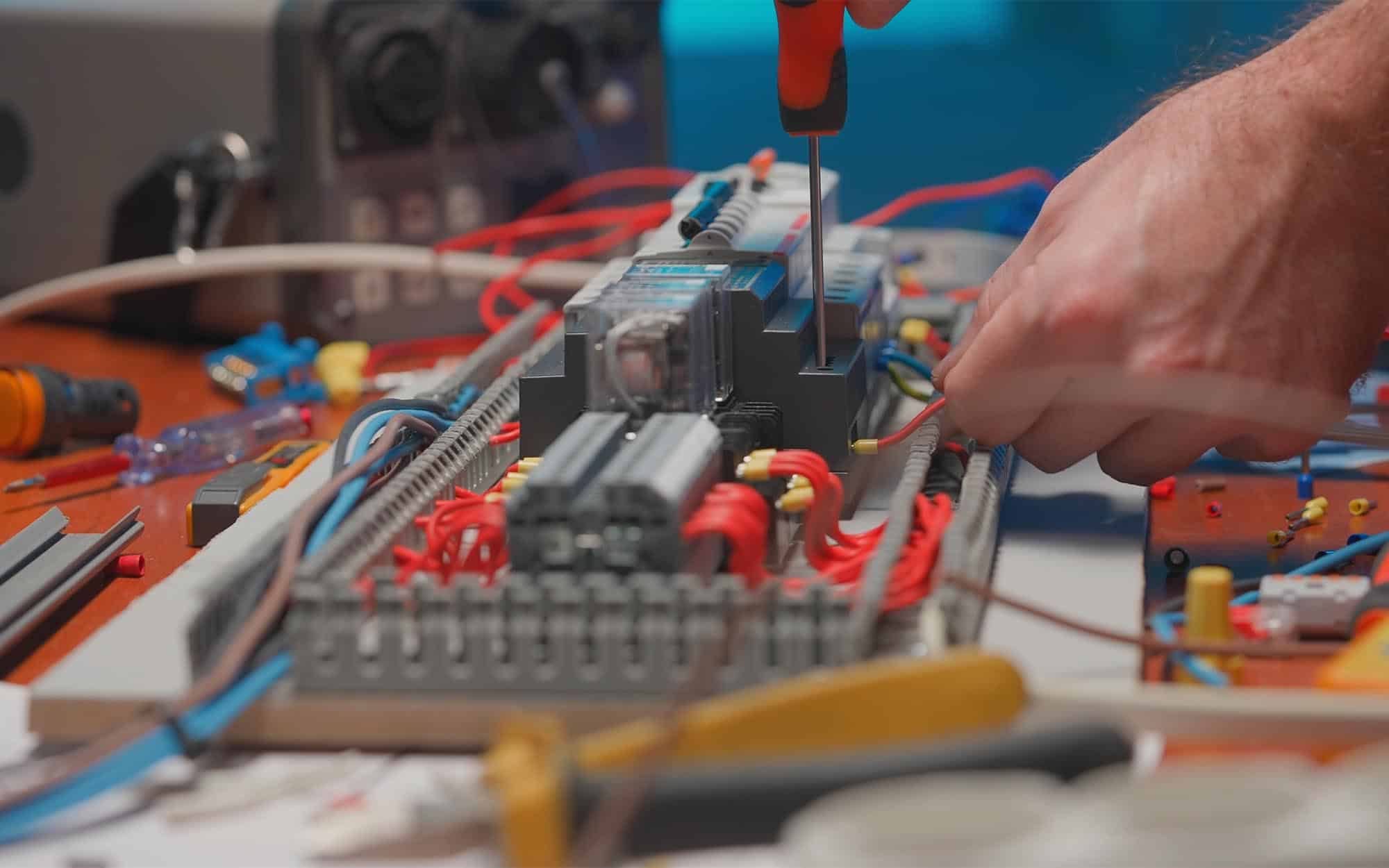

Electrical Panel Parts Guide

Circuit Breakers

Circuit breakers are one of the most vital components within an electrical control panel. They are automatic switches that shut off electrical flow when they detect issues like power surges, overloads, and short circuits. This protects the system from damage and prevents fires or electrocution hazards. There are a few main types of circuit breakers:

Thermal-Magnetic Circuit Breakers: These contain both a thermal overload sensing element and an electromagnetic trip element. The thermal part trips the breaker when the current gets too high, creating excessive heat. The magnetic element trips the breaker very quickly in response to short circuits. These hybrid breakers provide optimal protection.
Magnetic Circuit Breakers: These breakers contain only the electromagnetic trip element to rapidly respond to sudden spikes in current from short circuits or motor inrush currents. They don’t necessarily protect against slower overloads.
Hydraulic-Magnetic Circuit Breakers: These function similarly to magnetic breakers but incorporate a hydraulic delay feature for significant inrush currents from equipment like transformers and capacitors when first turned on. The brief delay prevents nuisance tripping.

Fuses

Fuses provide overcurrent protection like circuit breakers but work differently. Rather than automatically resetting when tripped, fuses contain a thin wire that melts from excessive current. This completely opens the circuit until the fuse is replaced. So, fuses are single-use compared to the reusable nature of circuit breakers. They are often found supplementing circuit breaker protection for sensitive equipment.

Contactors and Relays

Contactors are heavy-duty electric switches controlled by circuits rather than manually toggled. They allow control circuits to switch motors and lighting loads on or off. Contactors contain multiple sets of input and output contacts to handle multiple connections.

Closely related are relays, which are smaller switch devices also operating on control power. Relays often control contactors but may directly handle small loads like motors.

Transformers

Transformers manage the voltages supplied to various parts of the electrical system. They take the high-voltage power coming into the building and convert it to lower utilization voltages for lights and receptacles. Transformers also provide isolation between the premises wiring and the utility power.

Capacitors

Capacitors help regulate the power factor within the electrical system. This describes the ratio between working power and total power. Equipment like motors can create lagging power factors. Capacitors counteract this to boost the power factor closer to unity for improved electrical efficiency.

Meters and Gauges

Electrical meters and gauges provide vital feedback about power conditions. Key types include voltmeters, ammeters, and wattmeters measuring volts, amps, and watts, respectively. These may be analog gauges or digital displays. Advanced metering can also calculate additional parameters like power factor, kilowatts per hour, harmonics, and peak demand. This data helps optimize the electrical system.

Electronic Panel Parts From Industry-Leading Brands

ISS Supply leverages our long-standing partnerships with industry-leading brands to offer the highest-quality electronic panel parts. Learn more about our OEM partners.

Our Partners

Terminal Blocks

Terminal blocks provide connection points to cleanly route and organize wiring between components within the panel. Many types exist, like barrier, screw, and spring cage terminal blocks. They allow easy installation and changes to the wiring. Color coding and numbering strips help identify circuits.

Bus Bars

Bus bars serve as the main power distribution backbone within the panel. Thick conductors mounted on insulator bus bars carry the incoming power from the service entrance or main breaker to the individual branch circuit breakers. Separate bus bars may exist for neutral and ground conductors.

Breaker Panels

The breaker panel or load center organizes the individual circuit breakers, controlling power to all the branch circuits leaving the panel. Miniature thermal-magnetic breakers are commonly used in commercial panels. Larger molded case or insulated case breakers are also possible. Proper labeling identifies each circuit’s function.

Control Power Supplies

Control power supplies take a small portion of the main power and convert it into low-voltage DC for operating switches, circuit boards, controls, and other ancillary equipment. This allows the controls to function independently if the main power is interrupted. Backup batteries can also provide power continuity.

Control Relays and Contactors

Control relays and contactors act as automated switches for control circuits to operate equipment like motors, alarms, and valves. Control relays have multiple contacts to open or close many control circuits with one signal. Contactors are heavy-duty relays that switch higher power loads.

Programmable Logic Controllers (PLC)

PLCs provide sophisticated control capabilities through programmable microprocessors. They can monitor process variables like temperature, pressure, or flow rates and make logical decisions to control equipment accordingly via outputs. This allows automated and fine-tuned control over operations.

Motor Starters and Drives

Motor starters smoothly switch motors on and off and provide overload protection. More advanced variable frequency drives finely control motor speed and torque through adjustments to the power frequency and voltage. This allows optimizing the motor’s operation to match the required conditions.

Alarm Annunciator

Annunciator panels use indicator lights and text displays to show the status of different alarms, Safety interlocks, and process states. This allows operators to quickly identify issues needing attention. Audible alarms are also common.

Emergency Stop Buttons

Emergency stop buttons immediately shut down equipment in hazardous situations to prevent injuries and damage. When pressed, they interrupt all power to outputs through hardwired connections. Resetting is then required before restarting the system.
